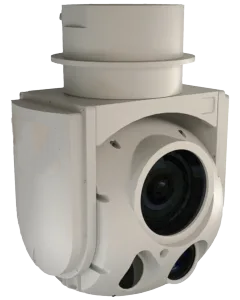

VTX 3500
TECHNICAL SPECIFICATIONS
  |
EO Camera |
| Detector: | CMOS 1/2.8” |
| Camera Resolution: | 1920 x 1080 px |
| Optical Zoom: | 45x |
IR Camera |
|
| Sensor: | Uncooled LWIR |
| Sensor Material: | VoX |
| Camera Resolution: | 640 x 512 px |
| Optical Zoom: | 4x |
Laser Rangefinder |
|
| Laser Rangefinder: | 20 - 4000 m |
| Laser Type: | Class 1 Eye Safe |
Laser Pointer |
|
| Laser Type | Class III B |
| Laser Power | > 50 mw |
Other Specifications |
|
| IP Protection Level: | IP66 |
| Operating Temperature: | -35°C to +55°C |
| Weight: | 3.7 kg (8.16 lb.) |
