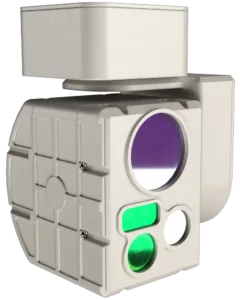

VTX 800
TECHNICAL SPECIFICATIONS
  |
EO Camera |
| Detector: | CMOS 1/2.8” |
| Camera Resolution: | 1920 x 1080 px |
| Zoom: | 10 Level (50x) |
IR Camera |
|
| Sensor: | Uncooled LWIR |
| Sensor Material: | VoX FPA |
| Camera Resolution: | 640 x 512 px |
| Focal Length: | 45 mm Fixed |
| Zoom: | 4 Level |
Laser Rangefinder |
|
| Laser Rangefinder: | 2000 m |
| Laser Type: | Class 1 Eye Safe |
Laser Illuminator |
|
| Wavelength: | 850 nm |
| Range: | < 500 m |
Other Specifications |
|
| IP Protection Level: | IP66 |
| Operating Temperature: | -20°C to +50°C |
| Weight: | 800 gr (1.76 lb.) |
